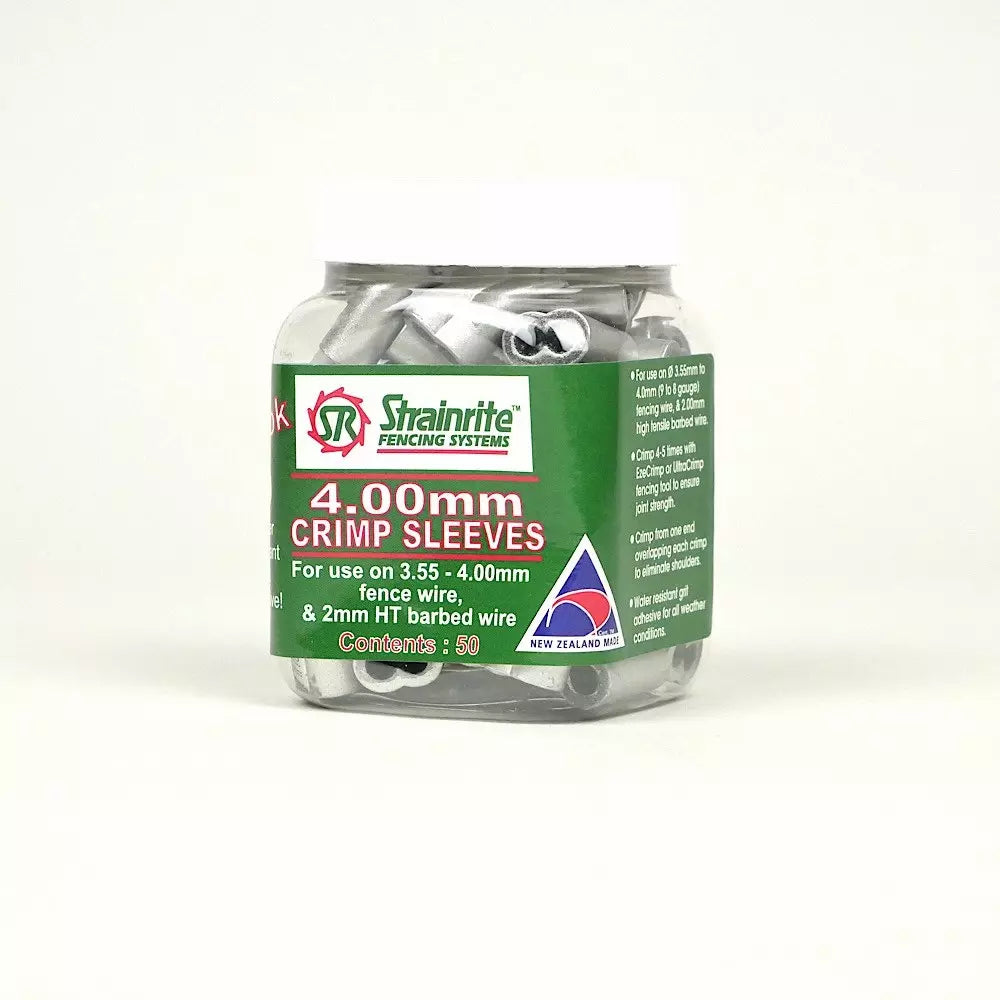

Strainrite Crimp Sleeve C4-5 - tub of 50
Strainrite Crimp Sleeve C4-5 - tub of 50
The Strainrite 23.15 Crimp Sleeve (C3-4) is a high-performance fencing solution designed for secure, long-lasting wire connections in agricultural and trellis applications. Engineered for 3.55mm to 4.0mm (9 to 8 gauge) high-tensile wires, including electric fencing, these sleeves deliver exceptional joint strength that exceeds the wire’s breaking strain when properly crimped with a Strainrite crimping tool. Featuring a water-resistant grit adhesive, the sleeves ensure reliable performance in all weather conditions, reducing maintenance needs and enhancing durability. Their cylindrical crimping design, achieved through 4–5 overlapping crimps, prevents splitting and maintains consistent tension, making installation straightforward and effective. Available in tubs of 500, these New Zealand-made sleeves offer professional-grade quality, ensuring robust, low-maintenance fencing solutions for livestock and horticultural systems.
Crimp 4-5 times with a Strainrite fencing tool to ensure joint strength. Crimp from one end overlapping each crimp to eliminate shoulders. Water resistant grit adhesive for all weather application.
-
To maximize these advantages, use only Strainrite crimp sleeves with compatible Strainrite tools, as non-Strainrite sleeves may damage tools and void warranties.
-
Proper crimping technique (4–5 overlapping crimps, leaving 1/4" between multiple sleeves) is critical for optimal performance.
| Feature | Specification |
|---|---|
| Product Name | Strainrite Crimp Sleeve C4-5 (4.00mm) |
| Wire Compatibility | 3.55mm to 4.0mm (9 to 8 gauge) fencing wire; 2.0mm high-tensile barbed wire |
| Material | Aluminium with water-resistant grit adhesive |
| Application | High-tensile wire connections for livestock, orchards, and field fencing |
| Joint Strength | Exceeds the breaking strain of the wire when properly installed |
| Crimping Requirement | Crimp 4–5 times with Strainrite fencing tool (e.g., EzeCrimp, UltraCrimp, or Procrimp) |
| Crimping Technique | Start at one end, overlap each crimp to eliminate shoulders |
| Weather Resistance | Water-resistant grit adhesive for all-weather application |
| Quantity per Container | Pottle of 50 |
| Origin | Made in New Zealand |
| Additional Notes | Compressed sleeve remains cylindrical without splitting; leave 1/4" between multiple sleeves for proper expansion; compatible with F3015/F3020 Electrocoup with Procrimp head |
