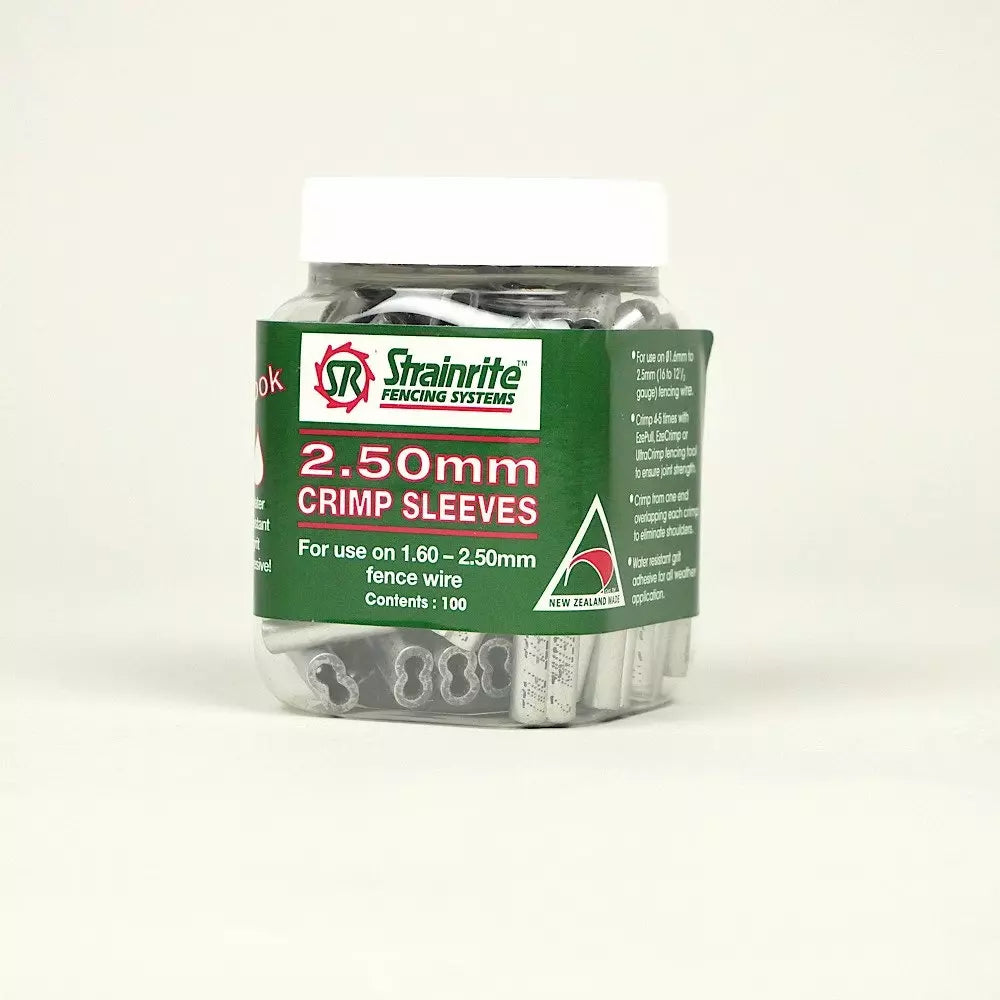

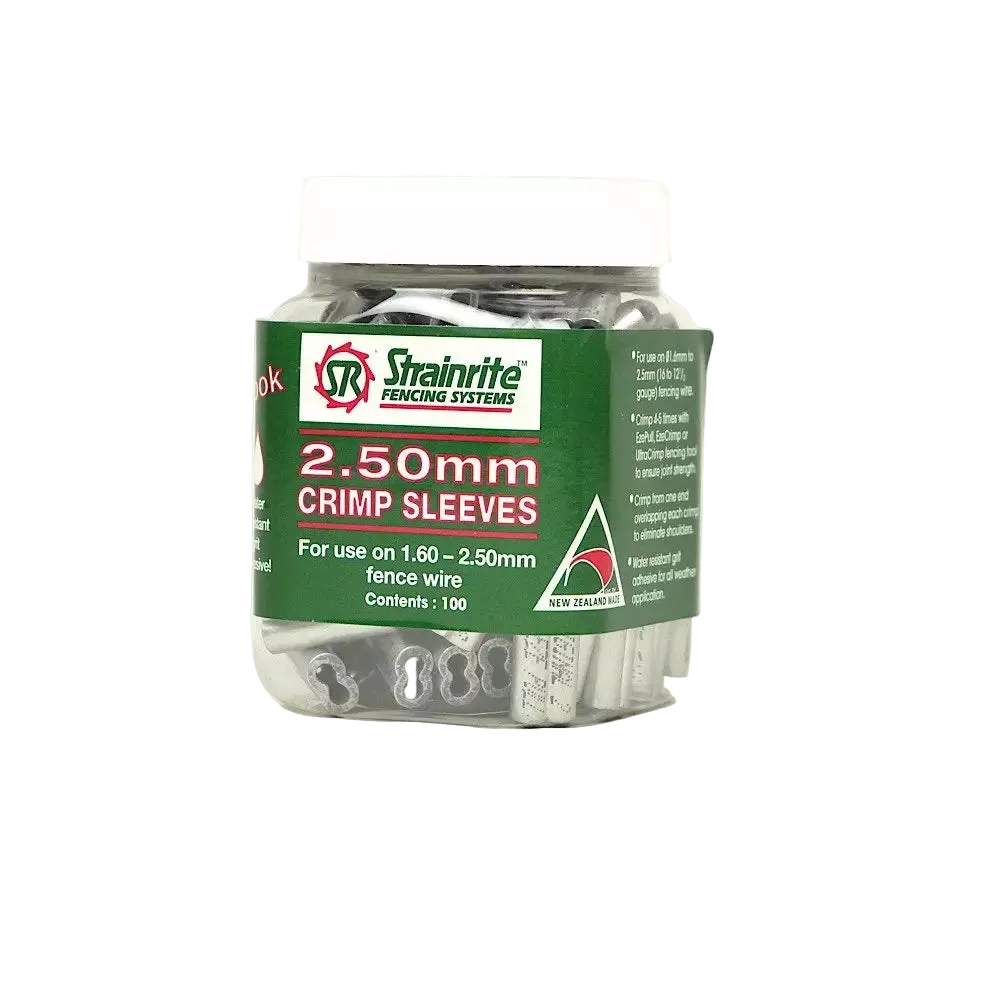

Strainrite Crimp Sleeve C2-3 - tub of 100
Strainrite Crimp Sleeve C2-3 - tub of 100
The Strainrite 2.5mm Crimp Sleeve (C2-3) is a high-performance fencing solution designed for secure, long-lasting wire connections in agricultural and trellis applications. Engineered for 1.6mm to 2.5mm (16 to 12.5 gauge) high-tensile wires, including electric fencing, these sleeves deliver exceptional joint strength that exceeds the wire’s breaking strain when properly crimped with a Strainrite crimping tool. Featuring a water-resistant grit adhesive, the sleeves ensure reliable performance in all weather conditions, reducing maintenance needs and enhancing durability. Their cylindrical crimping design, achieved through 4–5 overlapping crimps, prevents splitting and maintains consistent tension, making installation straightforward and effective. Available in cost-effective tubs of 100, these New Zealand-made sleeves offer professional-grade quality, ensuring robust, low-maintenance fencing solutions for livestock and horticultural systems.
-
To maximize these advantages, use only Strainrite crimp sleeves with compatible Strainrite tools, as non-Strainrite sleeves may damage tools and void warranties.
-
Proper crimping technique (4–5 overlapping crimps, leaving 1/4" between multiple sleeves) is critical for optimal performance.
| Feature | Specification |
|---|---|
| Product Name | Strainrite Crimp Sleeve C2-3 |
| Wire Compatibility | 1.6mm to 2.5mm fencing wire (16 to 12.5 gauge) |
| Material | High-quality metal with water-resistant grit adhesive |
| Application | High-tensile wire connections for livestock or trellis fencing |
| Joint Strength | Exceeds the breaking strain of the wire when properly installed |
| Crimping Requirement | Crimp 4–5 times with Strainrite fencing tool (e.g., EzeCrimp or UltraCrimp) |
| Crimping Technique | Start at one end, overlap each crimp to eliminate shoulders |
| Weather Resistance | Water-resistant grit adhesive for all-weather application |
| Quantity per Container | Tub of 100 sleeves |
| Weight | Approximately 0.40 lbs (0.18 kg) per tub of 100 |
| Origin | Made in New Zealand |
| Additional Notes | Compressed sleeve should remain cylindrical without splitting; leave 1/4" between multiple sleeves for proper expansion |
