M18™ FORCE LOGIC™ Brushless Press Tool Set

M18™ FORCE LOGIC™ Brushless Press Tool - M18BLHPT-202C M-SET BRUSHL.PRESSTOOL GB2

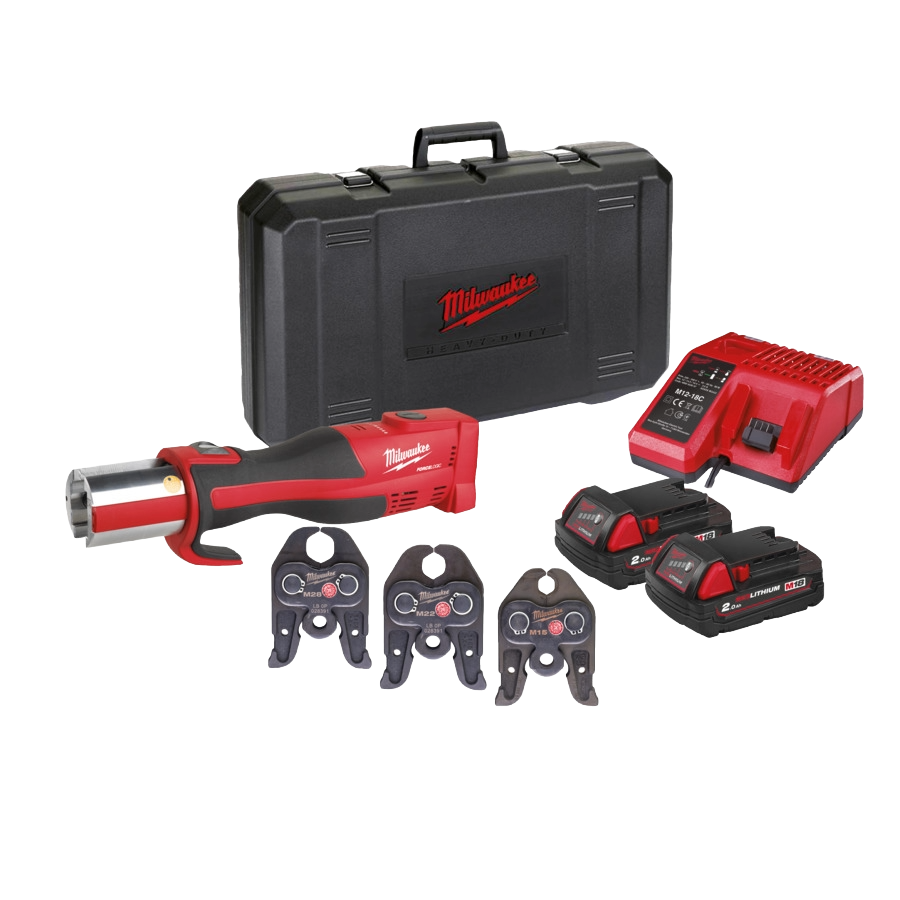

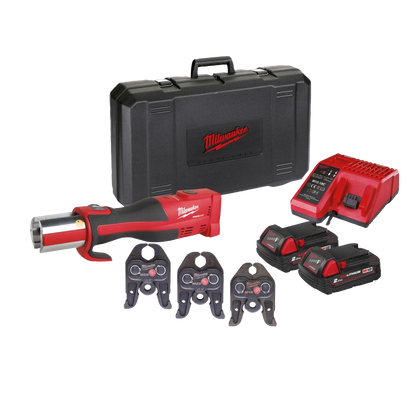

Contents: M18™ Force Logic™ Brushless Presstool, M18™ 2.0 AH Battery x 2, M12™-M18™ Charger, KITBOX, Press Jaws x 3 (J18-M15, J18-M22, J18-M28)

• New compact brushless motor in FORCE LOGIC™ press tools delivers up to 10% faster connections and 20% more runtime
• FORCE LOGIC™ press indicator: provides visual confirmation of a quality connection
• One hand operated tool for over head applications and working in narrow spaces
• Most compact in-line design with 13% less weight for easy operation
• Battery-tool communication: press operation doesn't start to prevent incomplete pressing in case of low charged battery. Pre-press battery check ensures enough charge to complete each press
• FORCE LOGIC™ long life reliability: No press cycle limitation within the 3 year maintenance interval
• Allows to press system related up to 108 mm metal pipes and 110 mm composite pipes
• Universal jaw reception to fit most common jaws available on the market
• On board fuel gauge and LED light
• Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability
• Flexible battery system: works with all MILWAUKEE® M18™ batteries

Max. press range multilayer MLCP pipe [mm] 75

Max. press size black iron steel 2

Max. press size in c_steel & stainless steel [mm] 54

Max. press size in copper [mm] 108

Pipe diameter 15 mm, 22 mm, 28 mm

Pipe fittings brand Geberit: Mapress, VSH: XPress, Eurotubi, Raccorderie, Rubinetterie, Sanha: Nirosan, Pegler Yorkshire: XPress

Press cycles 40,000

Press force [kN] 32

Standard equipment 3 x M-profile jaws (15/22/28 mm)

Supplied in Kitbox

Article Number 4933451138

EAN 240V 4002395138074

Battery pack capacity (Ah) 2.0

Battery type Li-ion

Charger included M12-18 C

Charger supplied 40 min

No. of batteries supplied 2

Voltage (V) 18

Weight with battery pack (EPTA) (kg) 2.9 (M18 B2)

Sound power level (Lwa)(dB(A)) 87.5

Sound power level uncertainty (dB(A)) 3

Sound pressure level (Lpa)(dB(A)) 76.5

Sound pressure level uncertainty (dB(A)) 3

Vibration level (m/s²) <2.5

Vibration uncertainty (m/s²) 1.5
