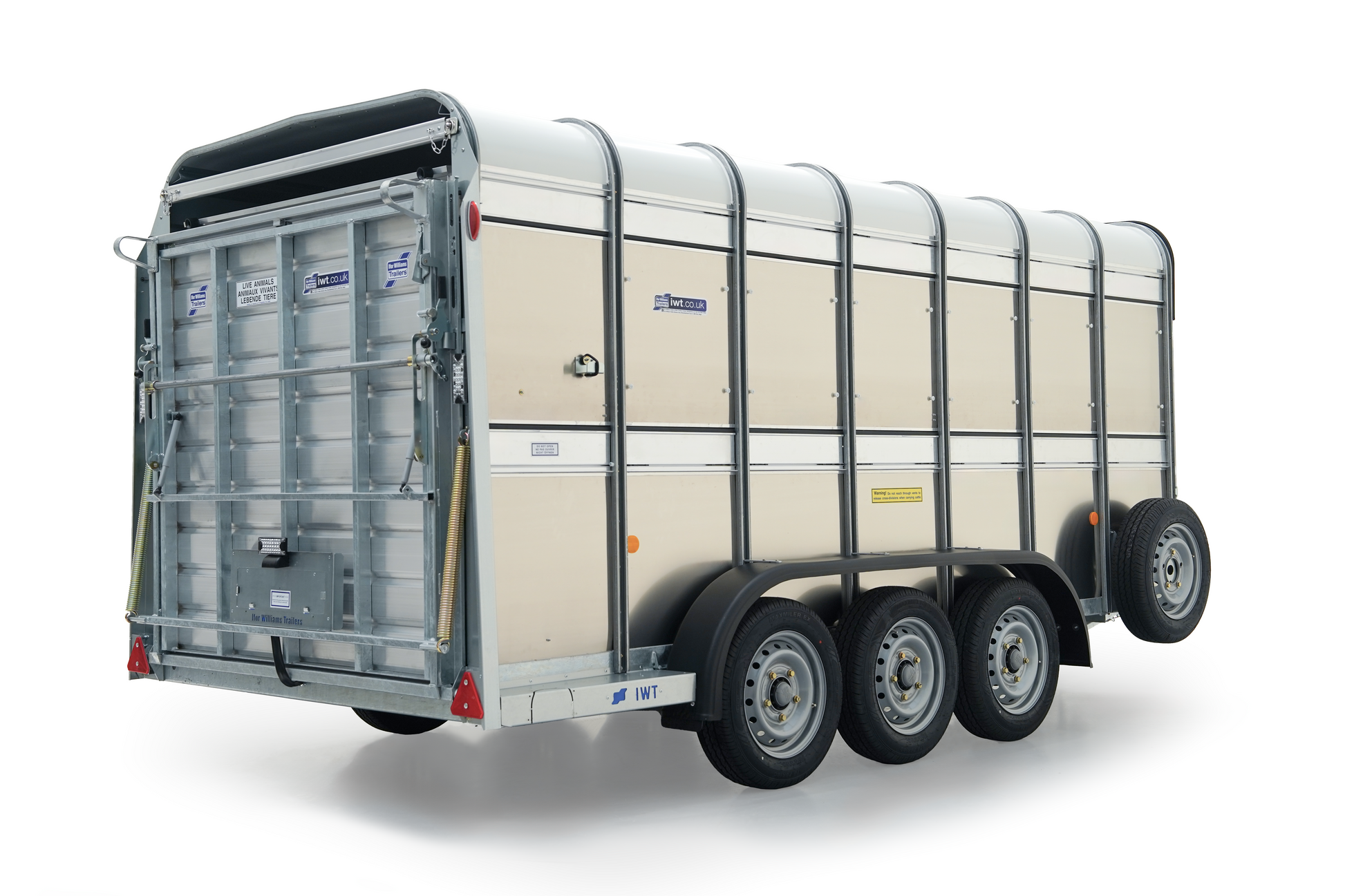

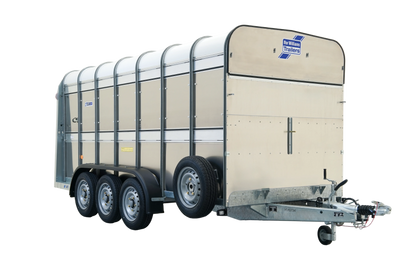

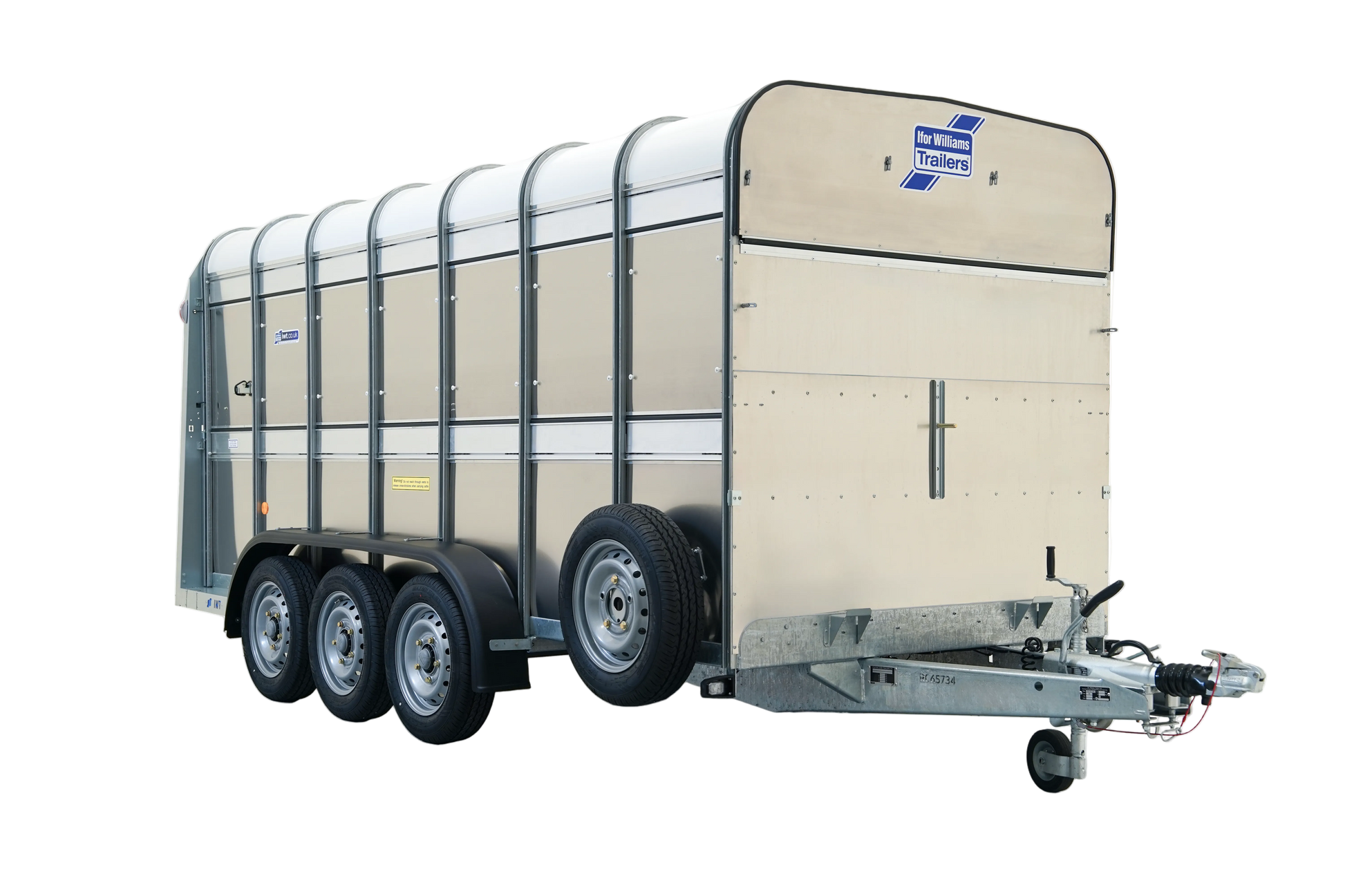

TA510GT 14'x 6' Tri-axle Livestock Trailer with Decks

Livestock Trailer TA510GT 14'x 6' 175/75R16 Decks - TG185220/TRI

About the model

The TA510 range offers substantial high specification trailers, designed for those who require the maximum volume and gross weight available.

Body lengths of 10', 12' and 14' are available, with height options of 6' and 7'. The 7' versions, with optional centre partition fitted, allow two 16.2hh horses to be transported*. All trailers have a maximum gross weight of 3500kg; payload varies between 2010kg and 2550kg depending on size and specification. All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoad? ramp and folding deck system.

TA510 trailers are fitted with a twin axle beam (tri-axle option on 14' model), leaf sprung suspension, galvanized steel chassis, aluminium side panels, heat reflecting roof, and grip-faced aluminium planking covered rear ramp.

These trailers also feature aluminium ramp gates, pressure treated timber planking with slip resistant aluminium treadplate flooring, receiver brackets for the optional cross divisions, side ventilation flaps and front access door.

Features

• Side vents and flaps
• Split front access door
• Rear ramp assistor
• Aluminium ramp gates
• Provision for carrying cross divisions and ramp gate extensions
• Beam axle system with sealed-for-life unitized wheel bearings
• Interior light
• Security marking and registration with The Equipment Register (TER)
• 50mm locking ball coupling
• Spare wheel and carrier

Optional Extras

• Large and small cross divisions
• Ramp gate extensions
• Centre partition, breast bars (7' headroom models only)
• GRP wind deflector
