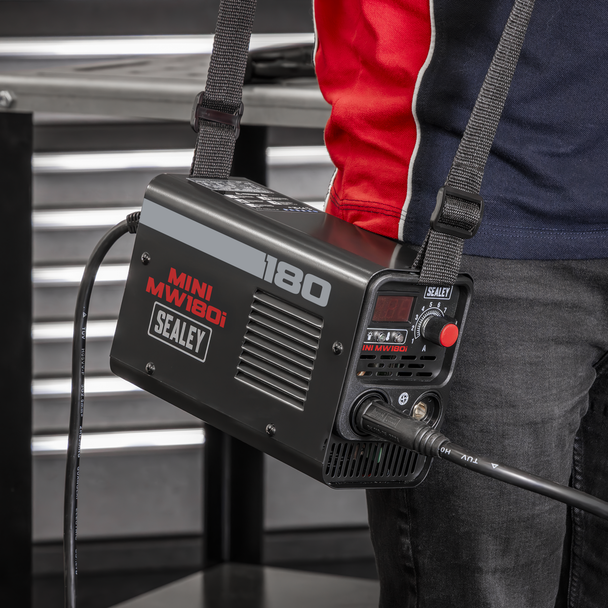

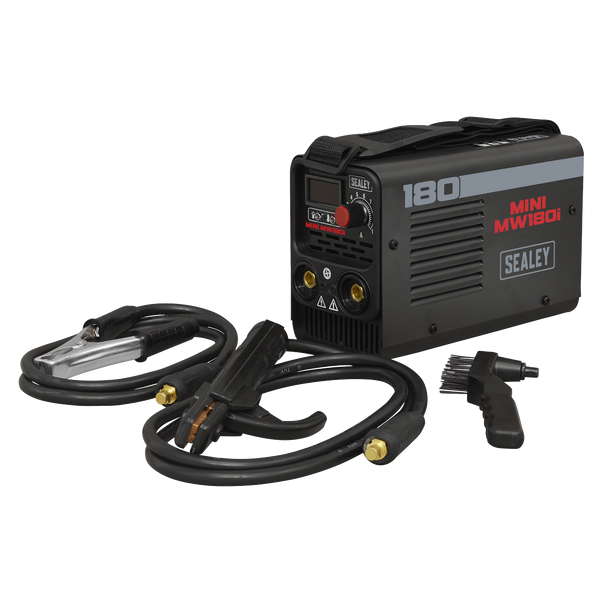

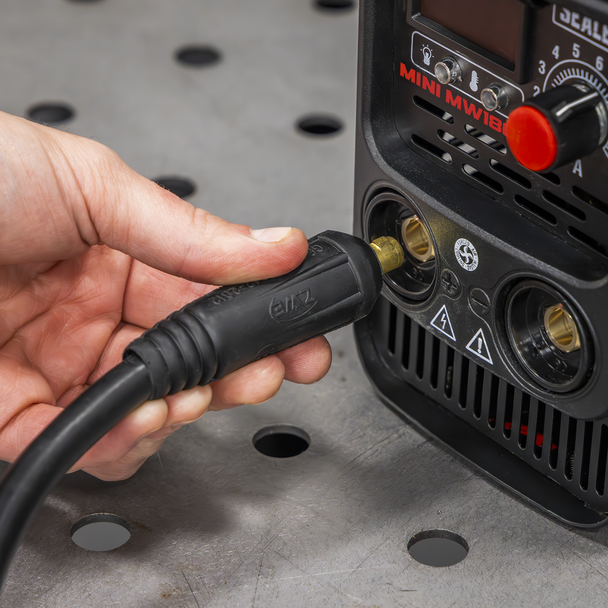

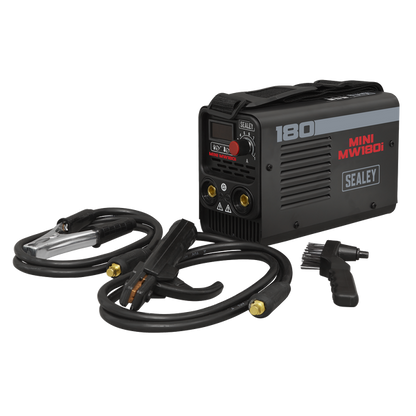

• ULTRA COMPACT AND LIGHTWEIGHT - Ultra-compact and lightweight unit weighing just 4kg approx. • IDEAL FOR A MOBILE TECHNICIAN - Portability allows the welder to be taken to the job at hand, ideal for mobile technicians. • SUITABLE FOR MOST ARC/MMA WELDING RODS - Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm. • USER FRIENDLY FUNCTIONS - Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. • SUPPLIED WITH - Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors.
SPECIFICATION
Welding Current:
20-180A
Duty Cycle:
100% @ 140A, 60% @ 180A
Absorbed Power:
7.8kW
Electrode Capacity:
1.6-5mm
Supply:
230V - 16A*
Plug Type:
Bare Wire
Power Supply Cable Length:
2m
IP Rating:
IP21S
Weight:
4.7kg
*Note
To achieve maximum power a 16A supply may be required.
