Flatbed Trailers

Whenever there’s work to be done you’ll find a flatbed model to help you do it. IWT flatbed trailers epitomise the flexibility of their commercial range. Purchasers from roofers to gardeners, small businesses to local authorities have all found that this range of trailers can carry heavy or bulky loads with ease.

Eurolight

Introducing the Eurolight, designed for the commercial and domestic user running small commercial vehicles or cars.
Offering a choice of eleven multi purpose trailers, the Eurolight range has been designed for versatility. With a maximum gross weight of between 1000kg and 2000kg, there is sure to be a trailer in the range to suit your requirements.

Tow in Style
The Eurolight range incorporates all of the high standards expected from Ifor Williams Trailers, whilst at the same time introducing aesthetic changes to produce a stylish trailer that remains in-keeping with the distinctive Ifor Williams design.

  • Resin Coated Plywood Platform
  • Spare Wheel and Carrier
  • Eurolight Suspension
  • Eurolight Jockey Wheel
  • Security Marking and Registration with TER
  • Unbraked Lockable Coupling Head
EL071-2012

Tyres: 145/80B10

Gross Weight: 750kg

Unladen Weight: 200kg

Internal Size: 2.05m x 1.30m

Overall Size: 3.40m x 1.40m

EL071-2512

Tyres: 145/80B10

Gross Weight: 750kg

Unladen Weight: 218kg

Internal Size: 2.55m x 1.30m

Overall Size: 3.95m x 1.40m

EL101-2012

Tyres: 145/70R13C

Gross Weight: 1000kg

Unladen Weight: 225kg

Internal Size: 2.08m x 1.30m

Overall Size: 3.38m x 1.39m

EL101-2512

Tyres: 145/70R13C

Gross Weight: 1000kg

Unladen Weight: 247kg

Internal Size: 2.58m x 1.30m

Overall Size: 3.91m x 1.39m

EL101-2515

Tyres: 145/70R13C

Gross Weight: 1000kg

Unladen Weight: 290kg

Internal Size: 2.58m x 1.58m

Overall Size: 3.88m x 1.67m

EL142-2512

Tyres: 145/70R13C

Gross Weight: 1400kg

Unladen Weight: 318kg

Internal Size: 2.58m x 1.30m

Overall Size: 3.91m x 1.39m

EL141-2515

Tyres: 165R13C

Gross Weight: 1400kg

Unladen Weight: 296kg

Internal Size: 2.58m x 1.58m

Overall Size: 3.88m x 1.67m

EL142-2515

Tyres: 145/70R13C

Gross Weight: 1400kg

Unladen Weight: 349kg

Internal Size: 2.58m x 1.58m

Overall Size: 3.88m x 1.67m

EL142-3015

Tyres: 145/70R13C

Gross Weight: 1400kg

Unladen Weight: 368kg

Internal Size: 3.08m x 1.58m

Overall Size: 4.38m x 1.67m

EL142-3615

Tyres: 145/70R13C

Gross Weight: 1400kg

Unladen Weight: 396kg

Internal Size: 3.68m x 1.58m

Overall Size: 4.98m x 1.67m

EX202-3015

Tyres: 145/70R13C

Gross Weight: 2000kg

Unladen Weight: 376kg

Internal Size: 3.08m x 1.58m

Overall Size: 4.38m x 1.67m

EX202-3615

Tyres: 145/70R13C

Gross Weight: 2000kg

Unladen Weight: 403kg

Internal Size: 3.68m x 1.58m

Overall Size: 4.98m x 1.67m

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with us before ordering.

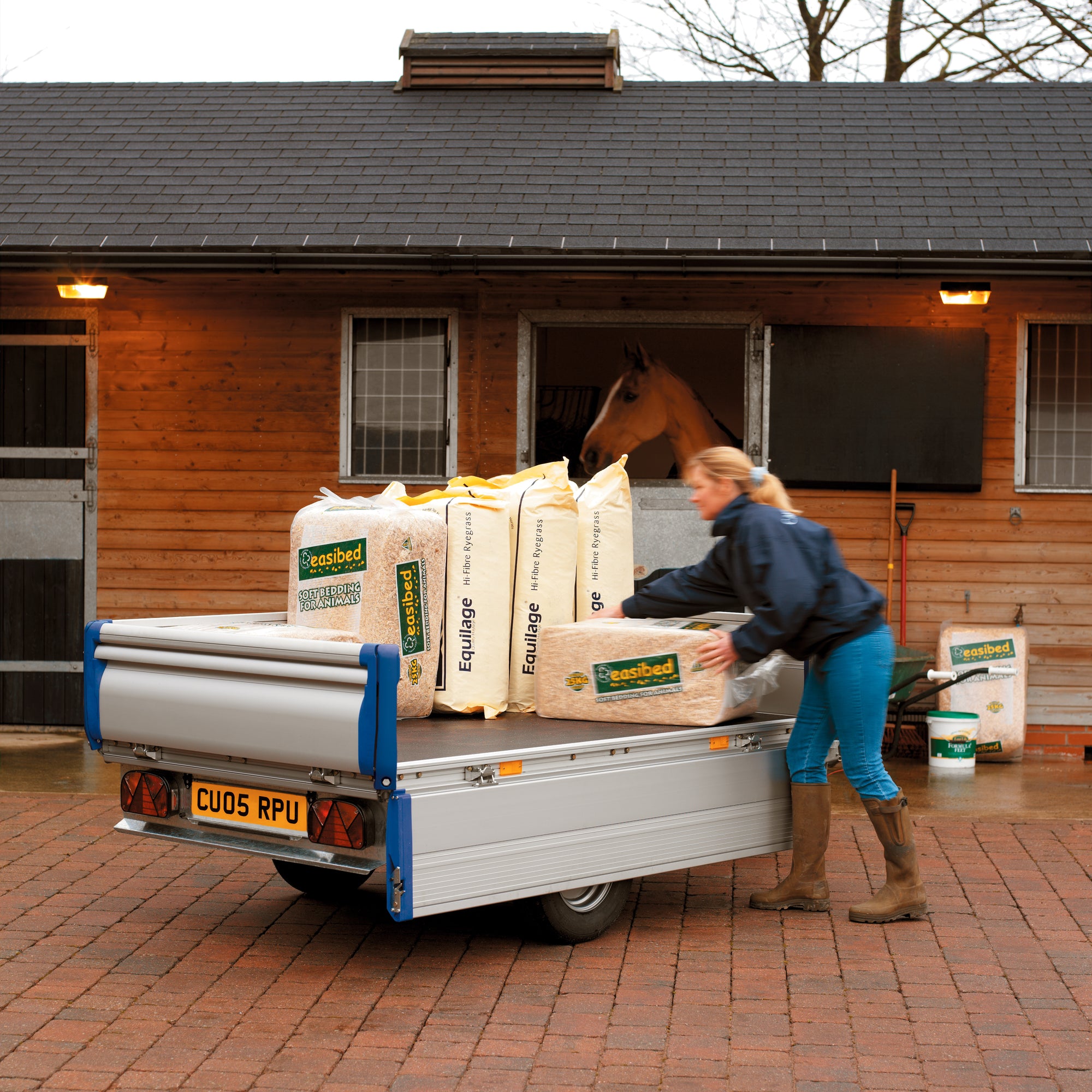

  • Aluminium Dropsides

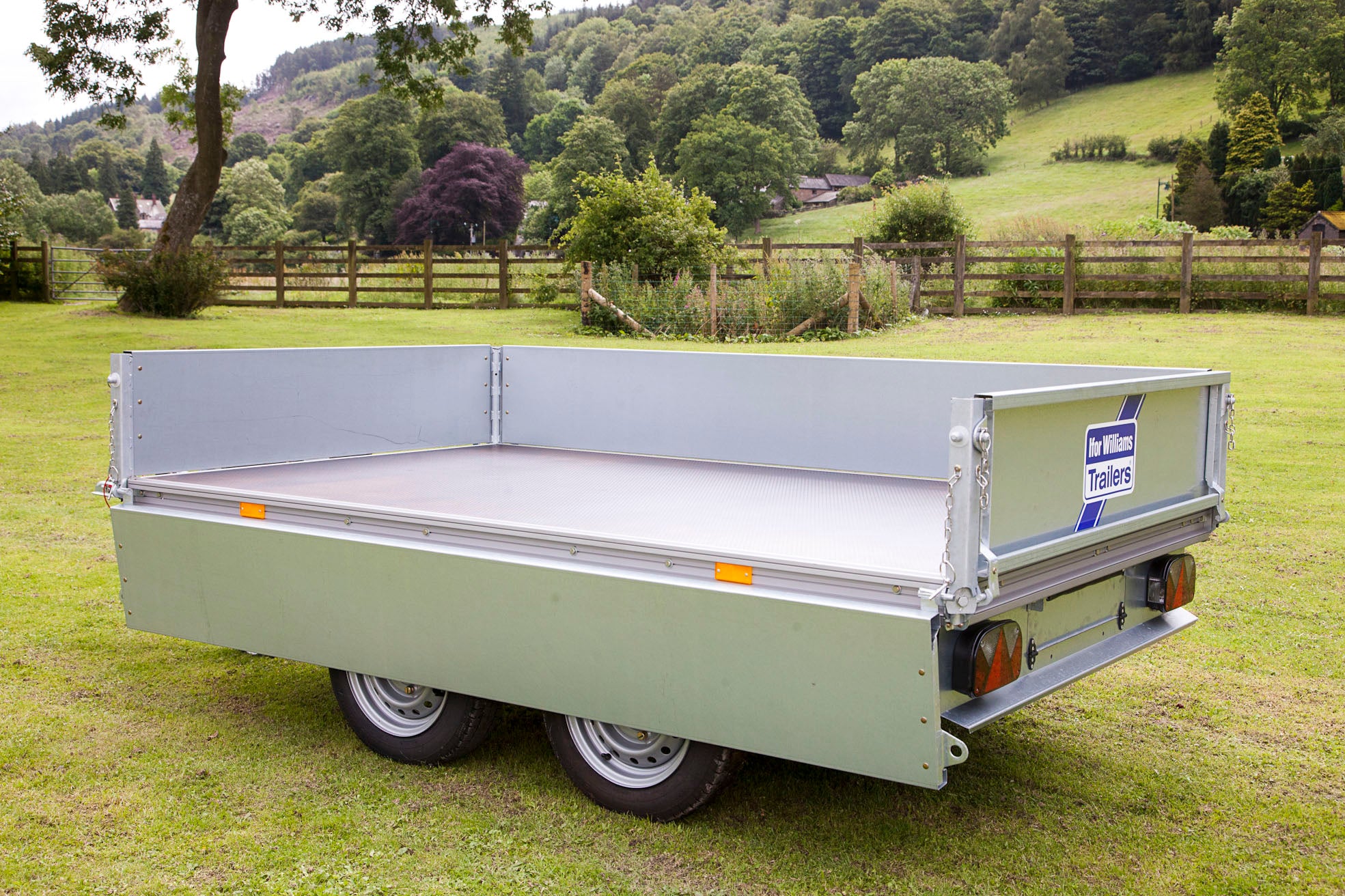

  • Steel Dropsides
  • Aluminium Headboard
  • Steel Headboard
  • Aluminium Treadplate Floor
  • 2.0m Long Loading Skids
  • Lashing Ring Kit
  • Ladder Rack

LT &LM

From the smallest LT85 to the largest LM208, all Flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension.
The Flatbed trailer range is normally supplied with twin axles. Tri-axle options are available on our LM6 series models in lengths over 12’.
With the addition of a winch, rear prop stands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.

A new addition to the range is the LM208, this is the largest Flatbed trailer. The LM208 tri-axle trailer has all the normal features of an Ifor Williams Trailer but has the capacity to transport up to 10 portable toilets. This trailer is available with handrails for the operators’ convenience and safety when loading. Alternatively the trailer can be used as a conventional trailer, with or without sides and with its large size the trailer offers great flexibility, including the ability to transport 6m lengths of materials or any large yet relatively light load.

  • Resin Coated Plywood Platform
  • Lockable Coupling Head
  • Spare Wheel & Carrier
  • Security Marking & Registration with TER
LT85
Tyres145/70R13C
Gross / Unladen2000kg / 450kg
Internal2.44m / 8' x 1.52m / 5'
Overall3.80m x 1.60m
LT105
Tyres145/70R13C
Gross / Unladen2000kg / 510kg
Internal3.01m / 9'9" x 1.68m / 5'5"
Overall4.35m x 1.75m
LT125
Tyres145/70R13C
Gross / Unladen2000kg / 565kg
Internal3.62m / 11'9" x 1.68m / 5'5"
Overall5.00m x 1.75m
LM85
Tyres195/60R12C
2700kg Option495kg unladen
3500kg Option525kg unladen
Internal2.44m / 8' x 1.52m / 5'
Overall3.80m x 1.60m
LM105
Tyres195/60R12C
2700kg Option575kg unladen
3500kg Option605kg unladen
Internal3.01m / 9'9" x 1.68m / 5'5"
Overall4.35m x 1.75m
LM208 (Tri-Axle)
Tyres195/60R12C
Gross / Unladen3500kg / 1200kg
Internal6.1m / 20’ x 2.5m / 8’2”
Overall7.4m / 24’2” x 2.55m / 8’3”
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with us before ordering.
  • Dropsides
  • Ladder Rack
  • Mesh Sides Kit
  • Aluminium Treadplate Floor
  • Lashing Ring Recessed 500kg
  • 6' Aluminium Loading Skids
  • 6' Steel Loading Skids
  • Branded Mudflaps
